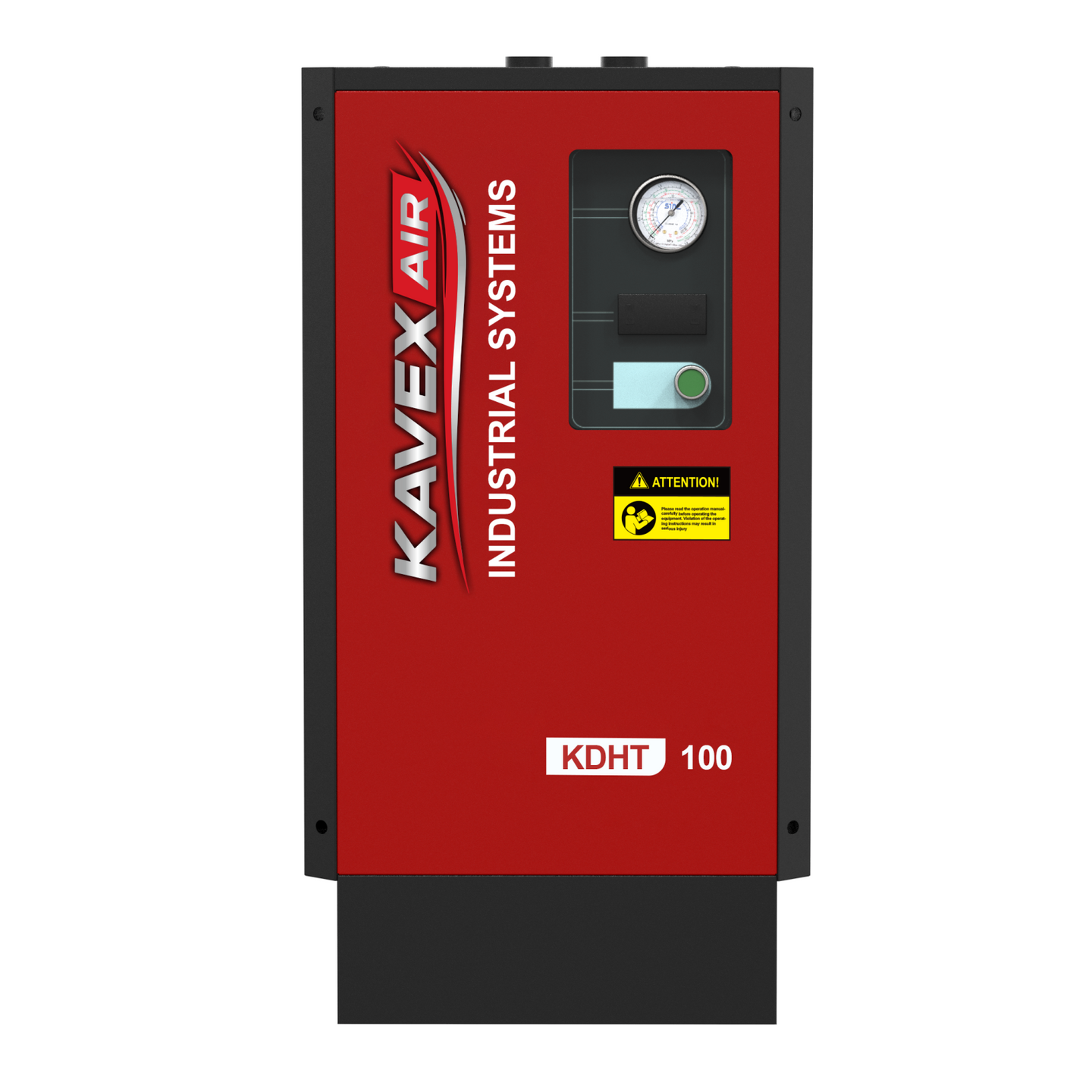

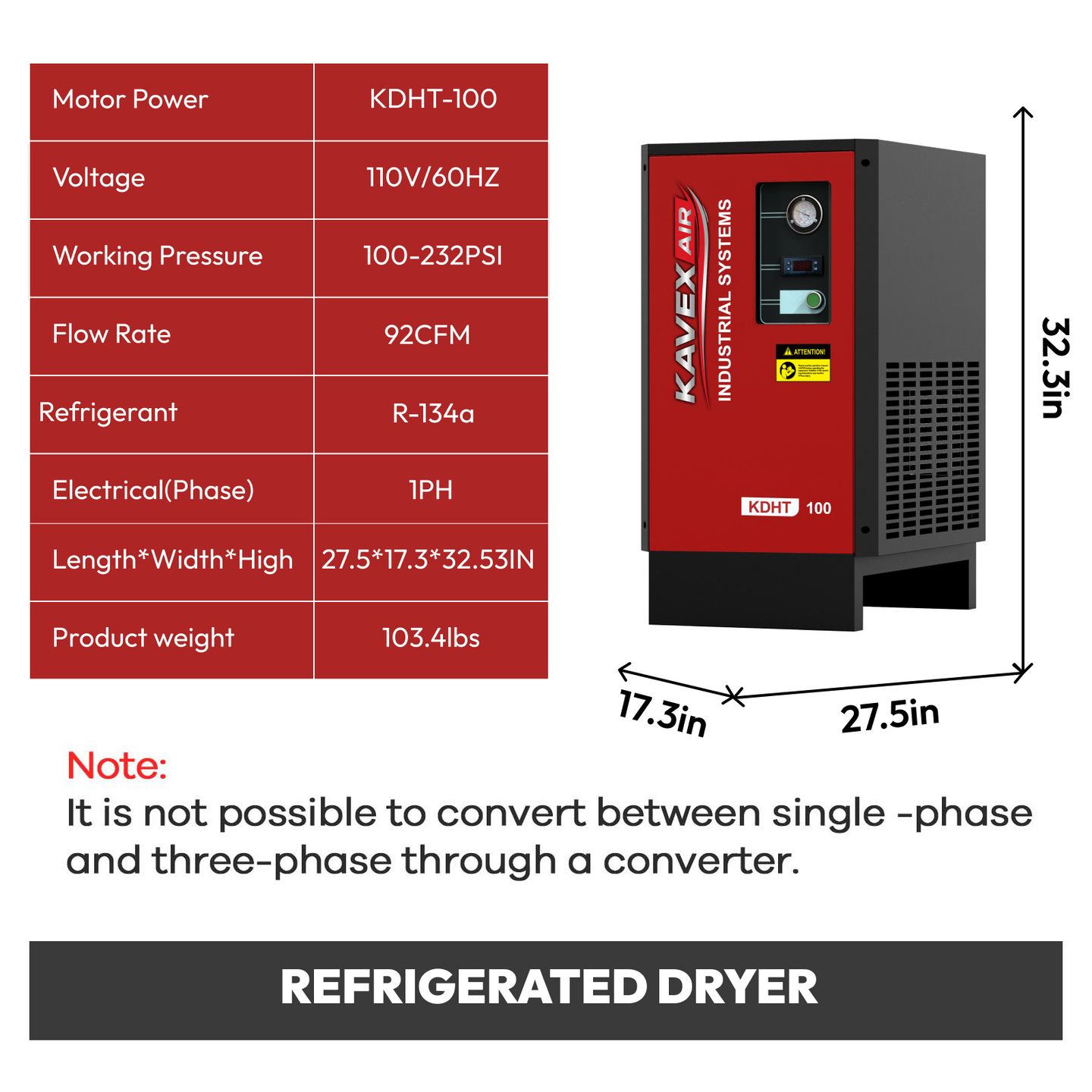

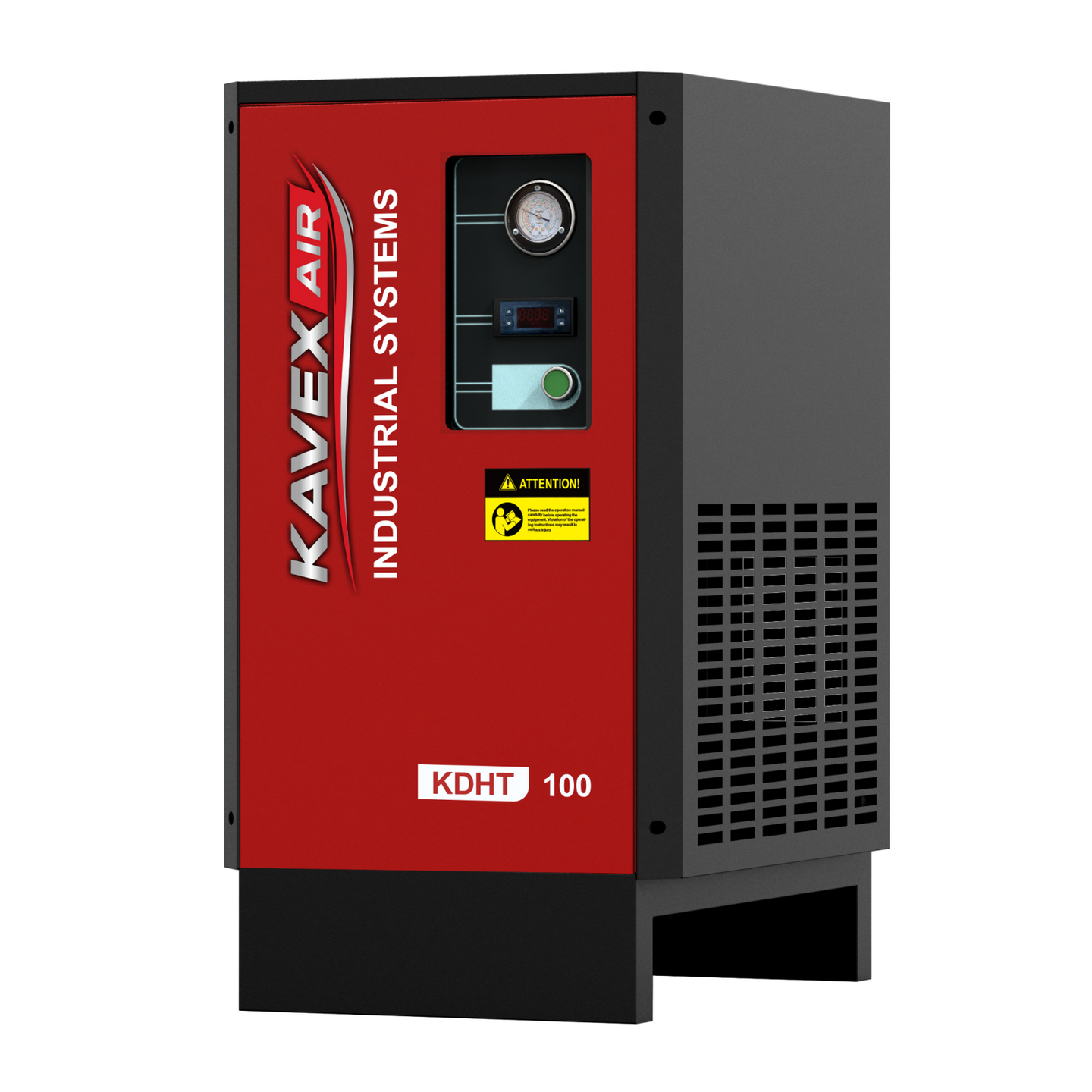

Refrigerated Air Dryer
Model:
KDHT-100
Voltage: 230V/60Hz, 1PH
Working Pressure:
100-232PSI
Flow Rate: 92CFM
Refrigerant: R-134a
Dimensions (LWH):
27.5*17.3*32.53IN
Product Weight: 103.4 lbs
Refrigerated Air Dryer
Model:
KDHT-100
Voltage: 230V/60Hz, 1PH
Working Pressure:
100-232PSI
Flow Rate: 92CFM
Refrigerant: R-134a
Dimensions (LWH):
27.5*17.3*32.53IN
Product Weight: 103.4 lbs
Frequently Bought Together
Total price$0.00
$0.00
Technical Specifications
| Updated Model No. | Flow (CFM) |
Power (HP) |
Power (KW) |
Matching Air Compressor Power | Pressure (PSI) |
Voltage (V/PH) |
Connection Port (Internal Thread) |
Length (IN) |
Width (IN) |
Height (IN) |
Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|

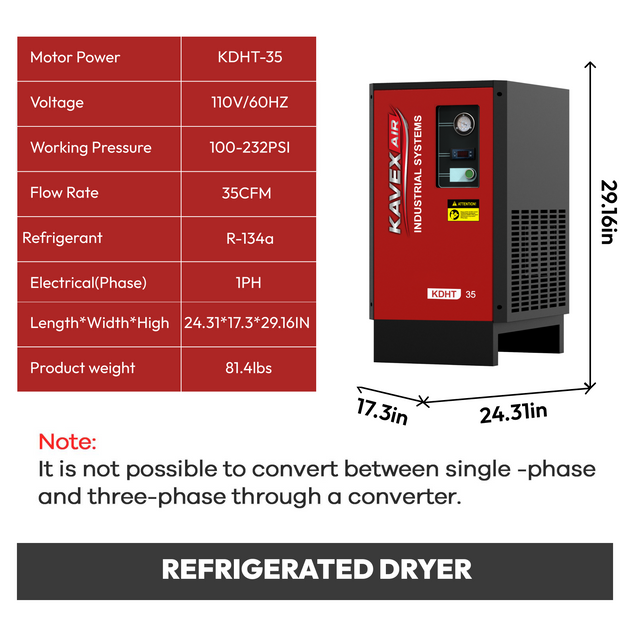

| KDHT-40 | 40 | 1.19 | 0.89 | 7.5kw/10hp | 100-232 | 110V/1PH | G3/4 | 24.31 | 17.34 | 29.16 | 81.4 |
| KDHT-70 | 64 | 0.67 | 0.5 | 11kw/15hp | 100-232 | 110V/1PH | G1 | 24.31 | 17.34 | 28.76 | 94.6 |
| KDHT-100 | 92 | 1.11 | 0.83 | 15kw/20hp | 100-232 | 110V/1PH | G1 | 27.46 | 17.34 | 32.31 | 103.4 |
| KDHT-140 | 134 | 1.19 | 0.89 | 22kw/30hp | 100-232 | 110V/1PH | G1-1/2 | 25.93 | 22.06 | 34.08 | 126.5 |
| KDHT-230 | 230 | 2.31 | 1.72 | 37kw/50hp | 100-232 | 110V/1PH | G1-1/2 | 28.25 | 21.67 | 36.84 | 165 |
| KDHT-300 | 300 | 2.64 | 1.97 | 45kw/60hp | 100-232 | 110V/1PH | G2-1/2 | 30.22 | 21.67 | 38.81 | 177.1 |
| KDHT-420 | 424 | 4.02 | 3 | 55kw/75hp | 100-232 | 220V/1PH | G2 | 37.75 | 25.61 | 42.75 | 277.2 |
| KDHT-500 | 477 | 4.43 | 3.3 | 75kw/100hp | 100-232 | 220V/1PH | G2 | 37.70 | 26.04 | 46.69 | 310.2 |
| KDHT-650 | 653 | 4.52 | 3.37 | 90kw/120hp | 100-232 | 220V/1PH | G2-1/2 | 48.78 | 34.2 | 54.57 | 517 |
| KDHT-830 | 830 | 6.03 | 4.5 | 110kw/150hp | 100-232 | 220V/3PH | G2-1/2 | 49.64 | 31.52 | 54.84 | 529.1 |
| KDHT-880 | 883 | 6.44 | 4.8 | 132kw/180hp | 100-232 | 220V/3PH | G2-1/2 | 51.22 | 34.28 | 56.74 | 569.8 |
| KDHT-1240 | 1236 | 8.8 | 6.56 | 200kw/275hp | 100-232 | 220V/3PH | G2-1/2 | 55.91 | 36.22 | 62.44 | 710 |
| KDHT-1560 | 1589 | 9.96 | 7.43 | 250kw/350hp | 100-232 | 220V/3PH | G2-1/2 | 55.91 | 36.22 | 62.44 | 710 |
