• 5-IN-1 ALL-IN-ONE DESIGN: Combines a rotary screw air compressor, air receiver tank, refrigerated dryer, multi-stage precision filters, and adsorption dryer into a single, compact system. There is no need for separate dryers, receiver tanks, or complex piping connections. This plug-and-play solution saves up to 50%–60% of floor space and simplifies the installation process.
• PM VSD ENERGY SAVING: Permanent Magnet Variable Speed Drive automatically adjusts motor speed according to actual air demand, reducing unnecessary no-load operation. Delivers stable air pressure and can save up to 35% electricity compared with fixed-speed compressors.
• CLEAN & DRY COMPRESSED AIR: Built-in refrigerated air dryer and high-efficiency filters help remove moisture, oil mist, and solid particles from compressed air. Helps protect pneumatic tools, cylinders, painting equipment, and precision machinery from moisture, rust, and contamination.
• QUIET OPERATION & EASY MAINTENANCE: Fully enclosed, sound-dampened cabinet helps reduce operating noise and allows flexible installation directly on the workshop floor. The integrated design simplifies maintenance compared with separate compressor, tank, dryer, and filter systems.
• SMART CONTROL & WIDE APPLICATION: Intelligent touchscreen controller provides real-time monitoring of pressure, temperature, running status, and fault alarms. Ideal for auto repair shops, woodworking, CNC machining, laser cutting, packaging, painting, and small manufacturing applications.

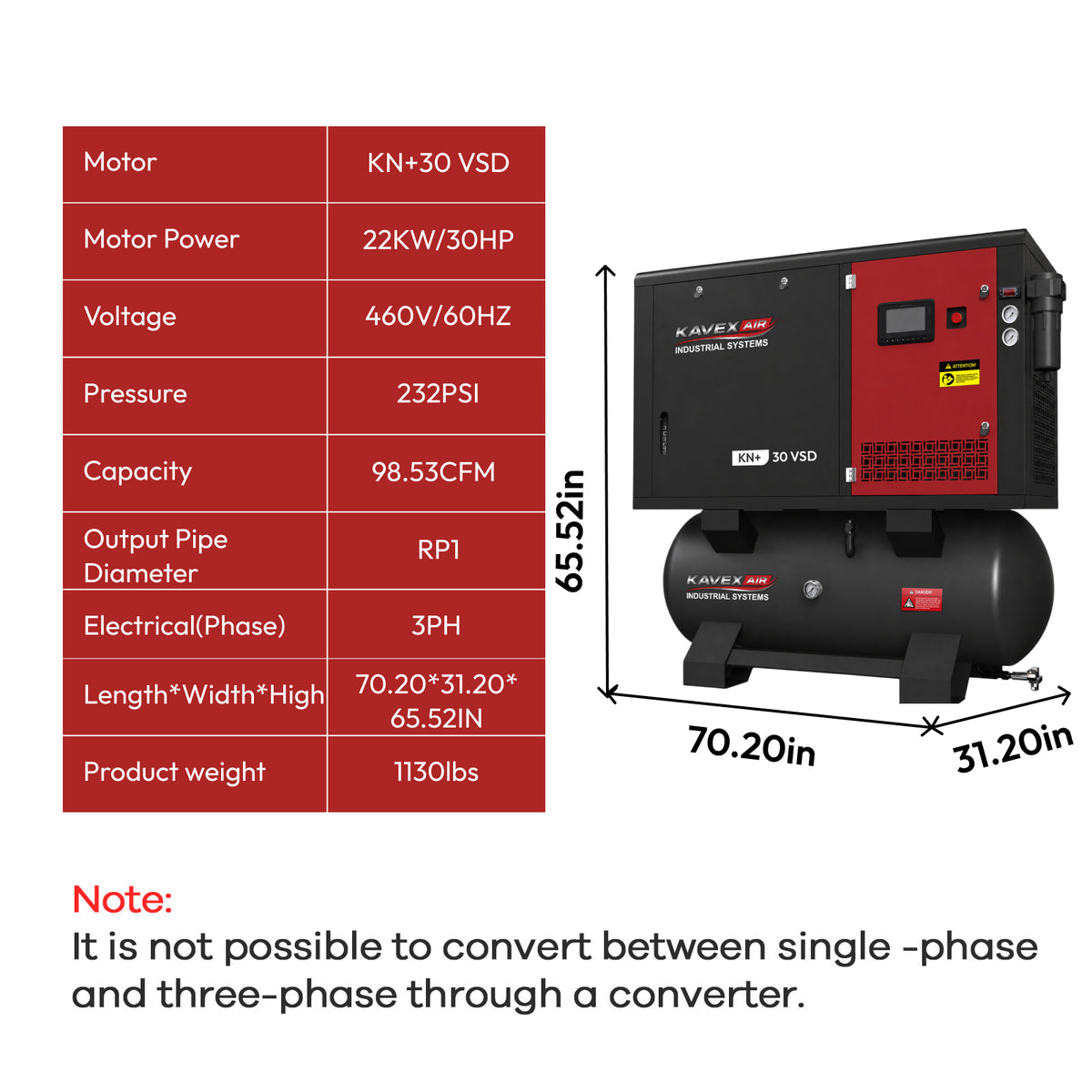

KAVEX 30HP 460V 5-in-1 VSD Rotary Screw Air Compressor with 120 Gallon Tank, 94.53CFM, 232 PSI, 60Hz (KN+30 VSD)
- Regular price
- $35,800.00
• 5-IN-1 ALL-IN-ONE DESIGN: Combines a rotary screw air compressor, air receiver tank, refrigerated dryer, multi-stage precision filters, and adsorption dryer into a single, compact system. There is no need for separate dryers, receiver tanks, or complex piping connections. This plug-and-play solution saves up to 50%–60% of floor space and simplifies the installation process.
• PM VSD ENERGY SAVING: Permanent Magnet Variable Speed Drive automatically adjusts motor speed according to actual air demand, reducing unnecessary no-load operation. Delivers stable air pressure and can save up to 35% electricity compared with fixed-speed compressors.
• CLEAN & DRY COMPRESSED AIR: Built-in refrigerated air dryer and high-efficiency filters help remove moisture, oil mist, and solid particles from compressed air. Helps protect pneumatic tools, cylinders, painting equipment, and precision machinery from moisture, rust, and contamination.
• QUIET OPERATION & EASY MAINTENANCE: Fully enclosed, sound-dampened cabinet helps reduce operating noise and allows flexible installation directly on the workshop floor. The integrated design simplifies maintenance compared with separate compressor, tank, dryer, and filter systems.
• SMART CONTROL & WIDE APPLICATION: Intelligent touchscreen controller provides real-time monitoring of pressure, temperature, running status, and fault alarms. Ideal for auto repair shops, woodworking, CNC machining, laser cutting, packaging, painting, and small manufacturing applications.
- Regular price
- $35,800.00
Couldn't load pickup availability
• 5-IN-1 ALL-IN-ONE DESIGN: Combines a rotary screw air compressor, air receiver tank, refrigerated dryer, multi-stage precision filters, and adsorption dryer into a single, compact system. There is no need for separate dryers, receiver tanks, or complex piping connections. This plug-and-play solution saves up to 50%–60% of floor space and simplifies the installation process.
• PM VSD ENERGY SAVING: Permanent Magnet Variable Speed Drive automatically adjusts motor speed according to actual air demand, reducing unnecessary no-load operation. Delivers stable air pressure and can save up to 35% electricity compared with fixed-speed compressors.
• CLEAN & DRY COMPRESSED AIR: Built-in refrigerated air dryer and high-efficiency filters help remove moisture, oil mist, and solid particles from compressed air. Helps protect pneumatic tools, cylinders, painting equipment, and precision machinery from moisture, rust, and contamination.
• QUIET OPERATION & EASY MAINTENANCE: Fully enclosed, sound-dampened cabinet helps reduce operating noise and allows flexible installation directly on the workshop floor. The integrated design simplifies maintenance compared with separate compressor, tank, dryer, and filter systems.
• SMART CONTROL & WIDE APPLICATION: Intelligent touchscreen controller provides real-time monitoring of pressure, temperature, running status, and fault alarms. Ideal for auto repair shops, woodworking, CNC machining, laser cutting, packaging, painting, and small manufacturing applications.
-
Vendor: KAVEXAIR
KAVEX 20HP 230V 4-in-1 VSD Rotary Screw Air Compressor with 120 Gallon Tank, 232 PSI, 60Hz
Regular price $31,800.00 -
Vendor: KAVEXAIR
KAVEX 20HP 230V 4-in-1 VSD Rotary Screw Air Compressor with 120 Gallon Tank, 80.16 CFM, 125 PSI, 60Hz
Regular price $24,600.00 -
Vendor: KAVEXAIR
KAVEX 30HP 460V 4-in-1 VSD Rotary Screw Air Compressor with 120 Gallon Tank,, 232 PSI, 60Hz
Regular price $31,800.00 -
Vendor: KAVEXAIR
KAVEX 30HP 230V 5-in-1 VSD Rotary Screw Air Compressor with 120 Gallon Tank, 94.53CFM, 232 PSI, 60Hz (KN+30 VSD)
Regular price $34,600.00
Technical Specifications
| Model | Nominal Power (HP) |
Nominal Power (KW) |
Working Pressure (PSI) |
Free Air Delivery (CFM) |
Air tank (Gal) |
Weight (LBS) |
Noise Level dB(A) |
Dimensions (L × W × H) (IN) |
Outlet Size |
|---|---|---|---|---|---|---|---|---|---|
| KN+15 VSD | 15 | 11 | 232 | 26.49 | 132 | 1128 | 70 | 70.90" × 45.30" × 75.60" | RP3/4 |
| KN+20 VSD | 20 | 15 | 232 | 54.38 | 132 | 1159 | 70 | 70.90" × 45.30" × 75.60" | RP3/4 |
| KN+30 VSD | 30 | 22 | 232 | 98.53 | 160 | 1130 | 70 | 70.90" × 45.30" × 75.60" | RP1 |
