Application：For 10 HP-20HP   Air Compressor

Maintenance Instructions for Screw Air Compressor
1. After 500 hours of use of a new machine, the lubricant for screw air compressor needs to be replaced:
2. After that, every 2,000 hours of use, replace maintenance consumables: air filter, oil filter, built-in oil separator (or external oil separator), lubricant for screw air compressor:
3. Pay attention to the oil level, display status on the display panel, check temperature, noise, etc.
4. The machine should be placed in a well-ventilated, well-lit, dry, clean and dust-free place;
5. After the machine has been running for a period of time, check the safety valve, thermostat, solenoid valve, radiator and other accessories that are prone to cause machine failures, and register and handle them in time.

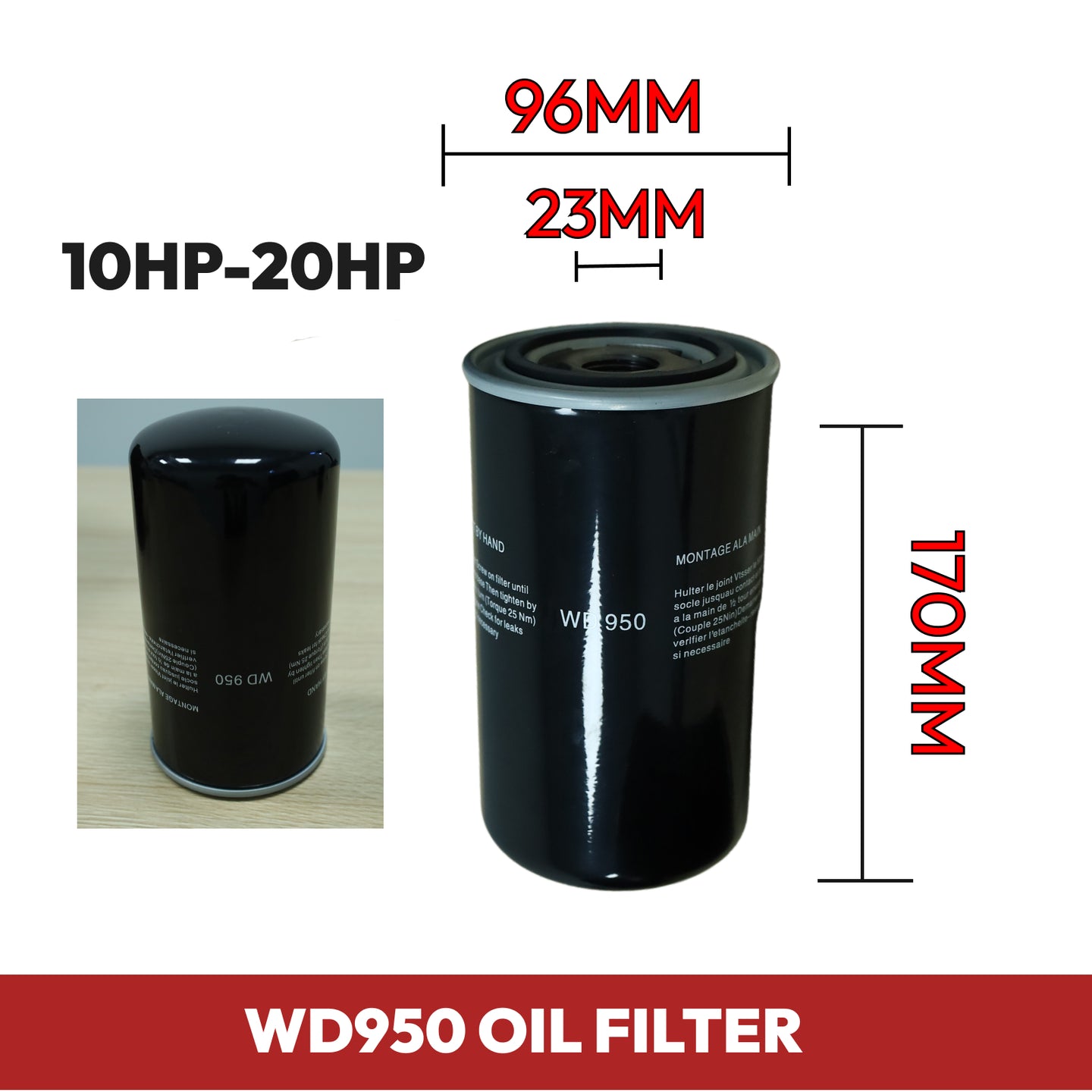

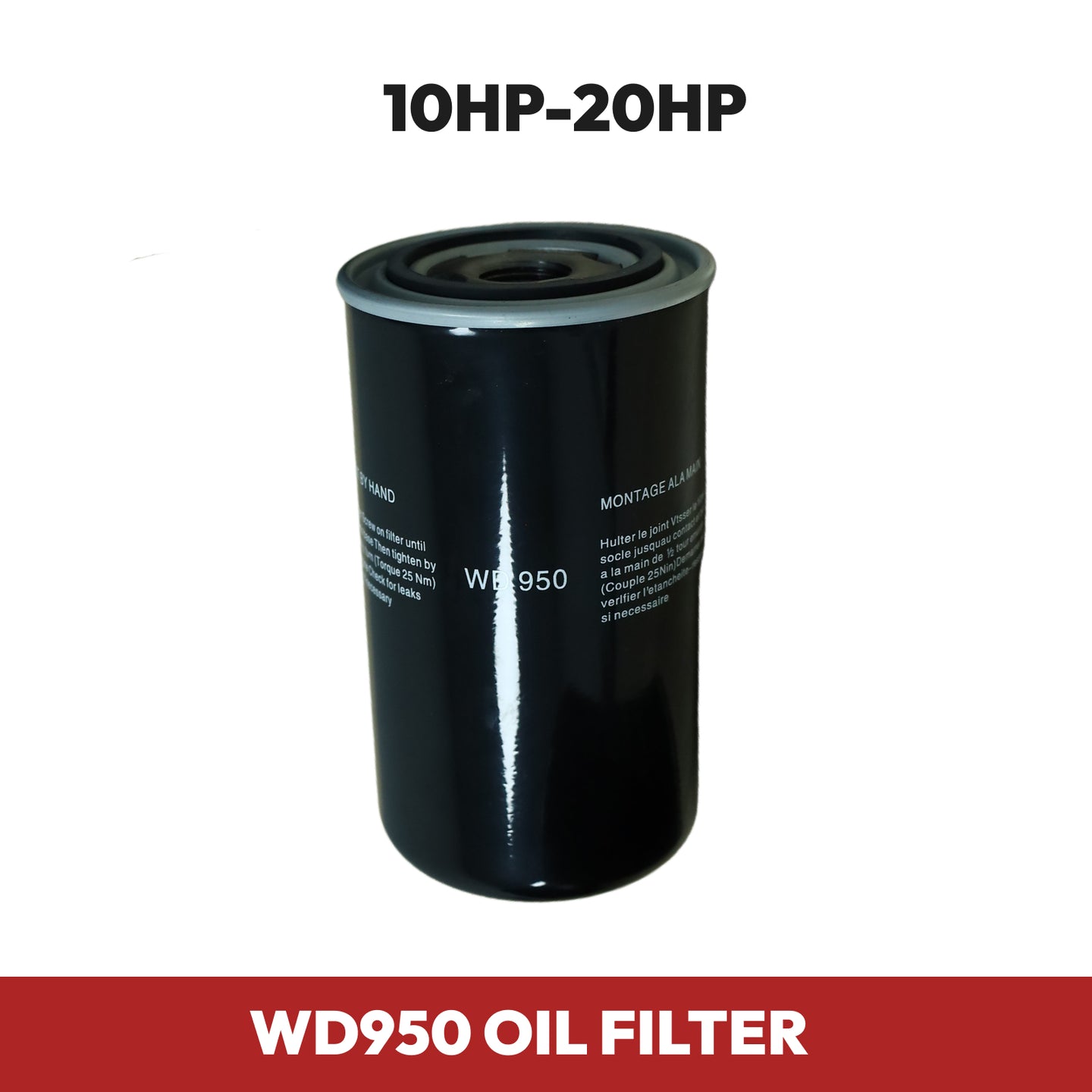

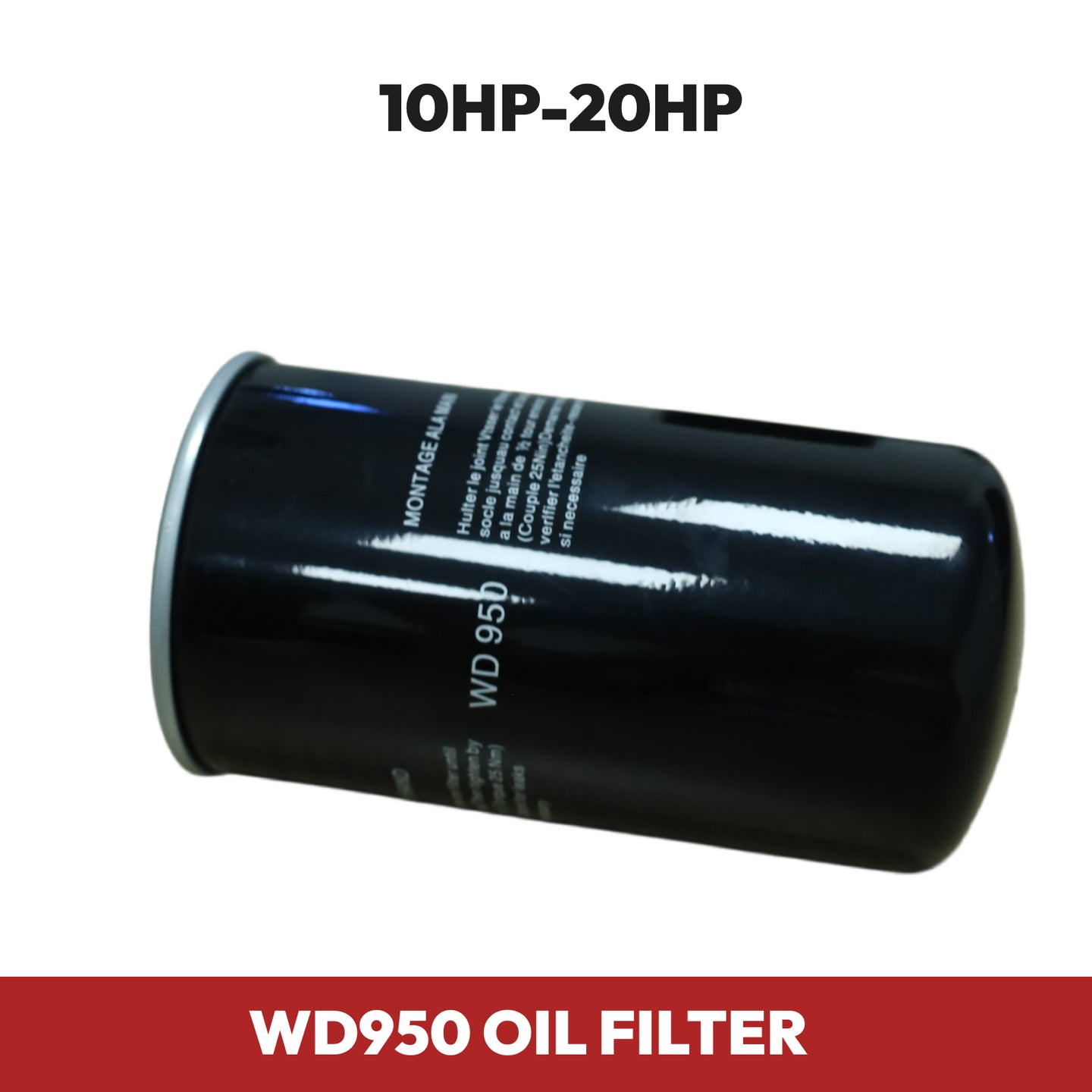

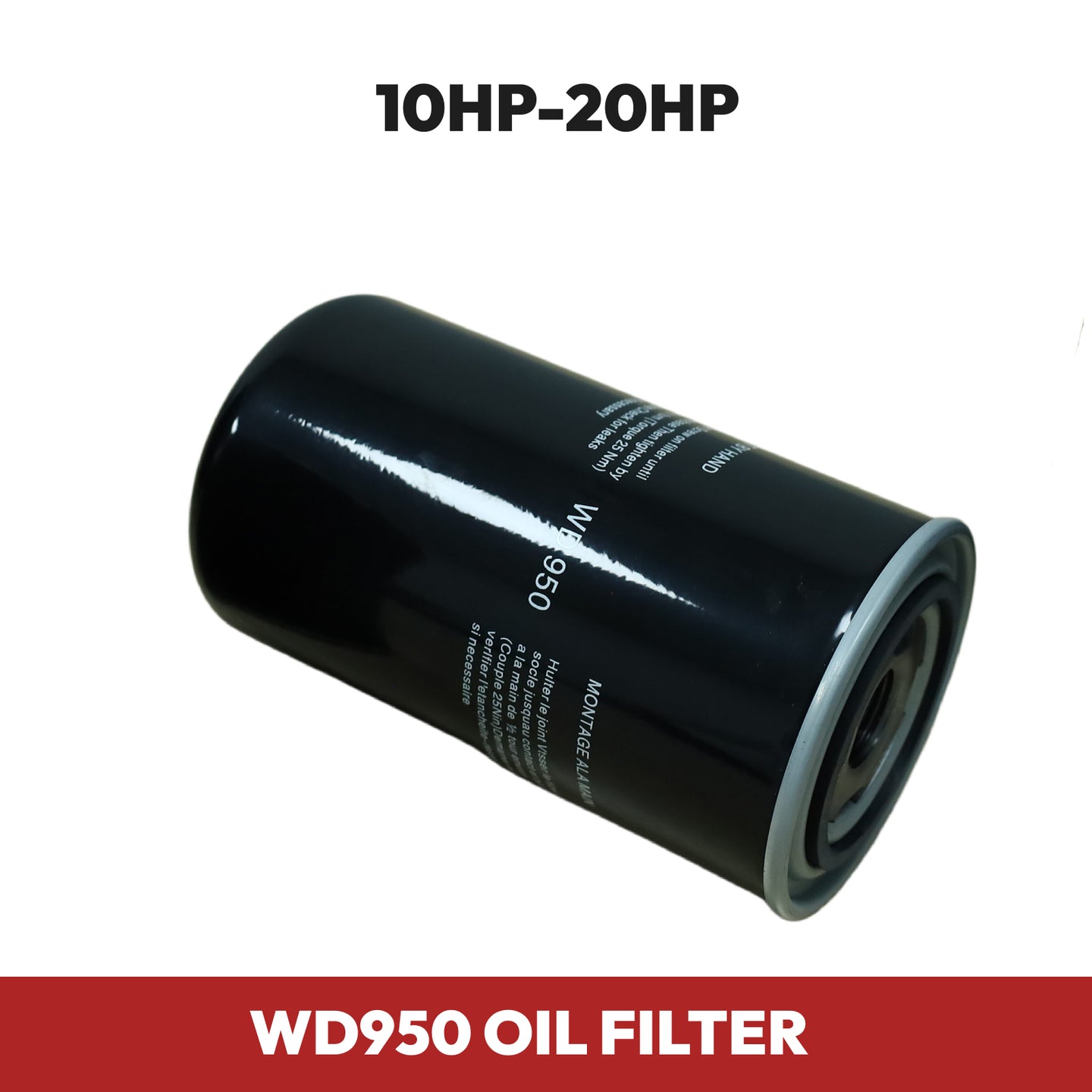

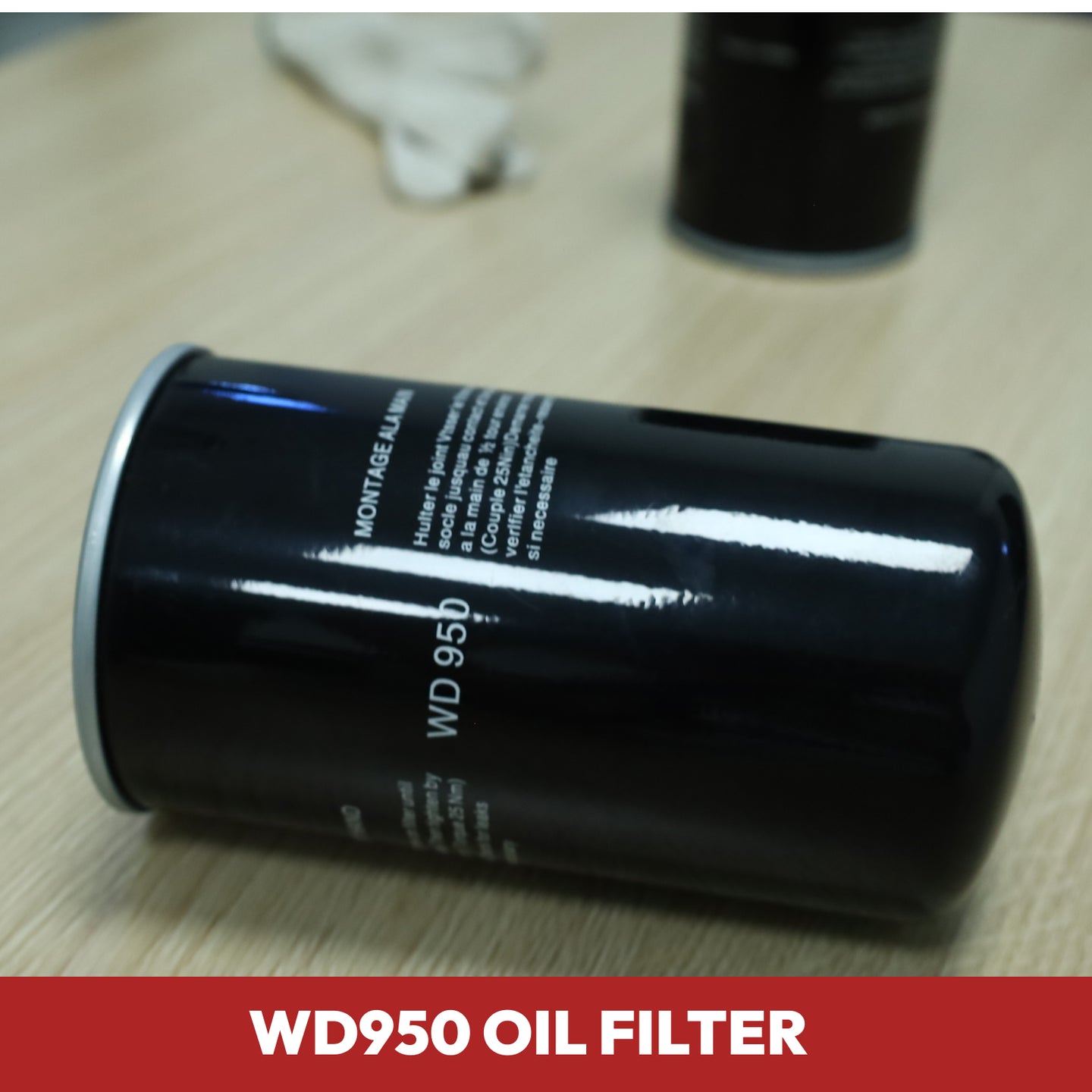

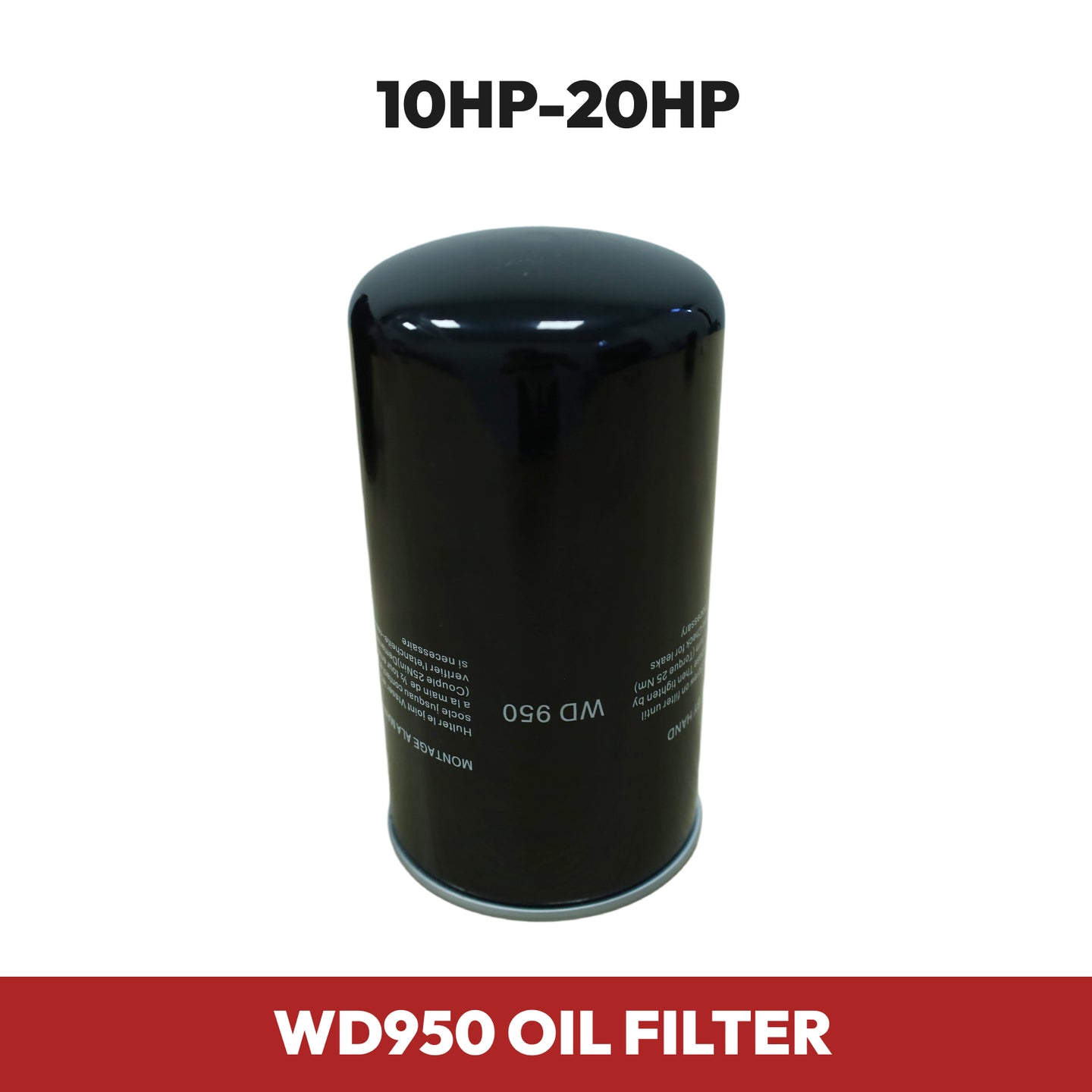

WD950 Oil Filter For 10 HP-20HP Screw Air Compressor Oil Filter

SKU WD719
$99.00
Application：For 10 HP-20HP   Air Compressor

Maintenance Instructions for Screw Air Compressor
1. After 500 hours of use of a new machine, the lubricant for screw air compressor needs to be replaced:
2. After that, every 2,000 hours of use, replace maintenance consumables: air filter, oil filter, built-in oil separator (or external oil separator), lubricant for screw air compressor:
3. Pay attention to the oil level, display status on the display panel, check temperature, noise, etc.
4. The machine should be placed in a well-ventilated, well-lit, dry, clean and dust-free place;
5. After the machine has been running for a period of time, check the safety valve, thermostat, solenoid valve, radiator and other accessories that are prone to cause machine failures, and register and handle them in time.
$99.00

Application：For 10 HP-20HP   Air Compressor

Maintenance Instructions for Screw Air Compressor
1. After 500 hours of use of a new machine, the lubricant for screw air compressor needs to be replaced:
2. After that, every 2,000 hours of use, replace maintenance consumables: air filter, oil filter, built-in oil separator (or external oil separator), lubricant for screw air compressor:
3. Pay attention to the oil level, display status on the display panel, check temperature, noise, etc.
4. The machine should be placed in a well-ventilated, well-lit, dry, clean and dust-free place;
5. After the machine has been running for a period of time, check the safety valve, thermostat, solenoid valve, radiator and other accessories that are prone to cause machine failures, and register and handle them in time.

Frequently Bought Together

Total price$796.00

Technical Specifications

Model HP KW Pressure (PSI) Air Flow (CFM) Weight (LBS) Noise dB(A) Dimensions (L × W × H) Outlet Size
KQ5.5 VSD 5.5 4 125 PSI 22 CFM 399 LBS 65 29.53" × 29.53" × 31.50" RP1/2
KQ5.5 VSD 5.5 4 145 PSI 18 CFM 399 LBS 65 29.53" × 29.53" × 31.50" RP1/2
KQ7.5 VSD 7.5 5.5 125 PSI 28 CFM 399 LBS 65 29.53" × 29.53" × 31.50" RP1/2
KQ7.5 VSD 7.5 5.5 145 PSI 24 CFM 399 LBS 65 29.53" × 29.53" × 31.50" RP1/2
KQ7.5 VSD 7.5 5.5 189 PSI 21 CFM 399 LBS 65 29.53" × 29.53" × 31.50" RP1/2
KQ10 VSD 10 7.5 125 PSI 37 CFM 531 LBS 68 35.43" × 23.62" × 32.68" RP1/2
KQ10 VSD 10 7.5 145 PSI 34 CFM 531 LBS 68 35.43" × 23.62" × 32.68" RP1/2
KQ10 VSD 10 7.5 189 PSI 26 CFM 531 LBS 68 35.43" × 23.62" × 32.68" RP1/2
KQ15 VSD 15 11 125 PSI 66 CFM 728 LBS 68 42.52" × 29.53" × 38.58" RP3/4
KQ15 VSD 15 11 145 PSI 65 CFM 728 LBS 68 42.52" × 29.53" × 38.58" RP3/4
KQ15 VSD 15 11 189 PSI 34 CFM 728 LBS 68 42.52" × 29.53" × 38.58" RP3/4
KQ20 VSD 20 15 125 PSI 86 CFM 849 LBS 68 42.52" × 29.53" × 38.58" RP3/4
KQ20 VSD 20 15 145 PSI 85 CFM 849 LBS 68 42.52" × 29.53" × 38.58" RP3/4
KQ20 VSD 20 15 189 PSI 64 CFM 816 LBS 68 42.52" × 29.53" × 38.58" RP3/4
