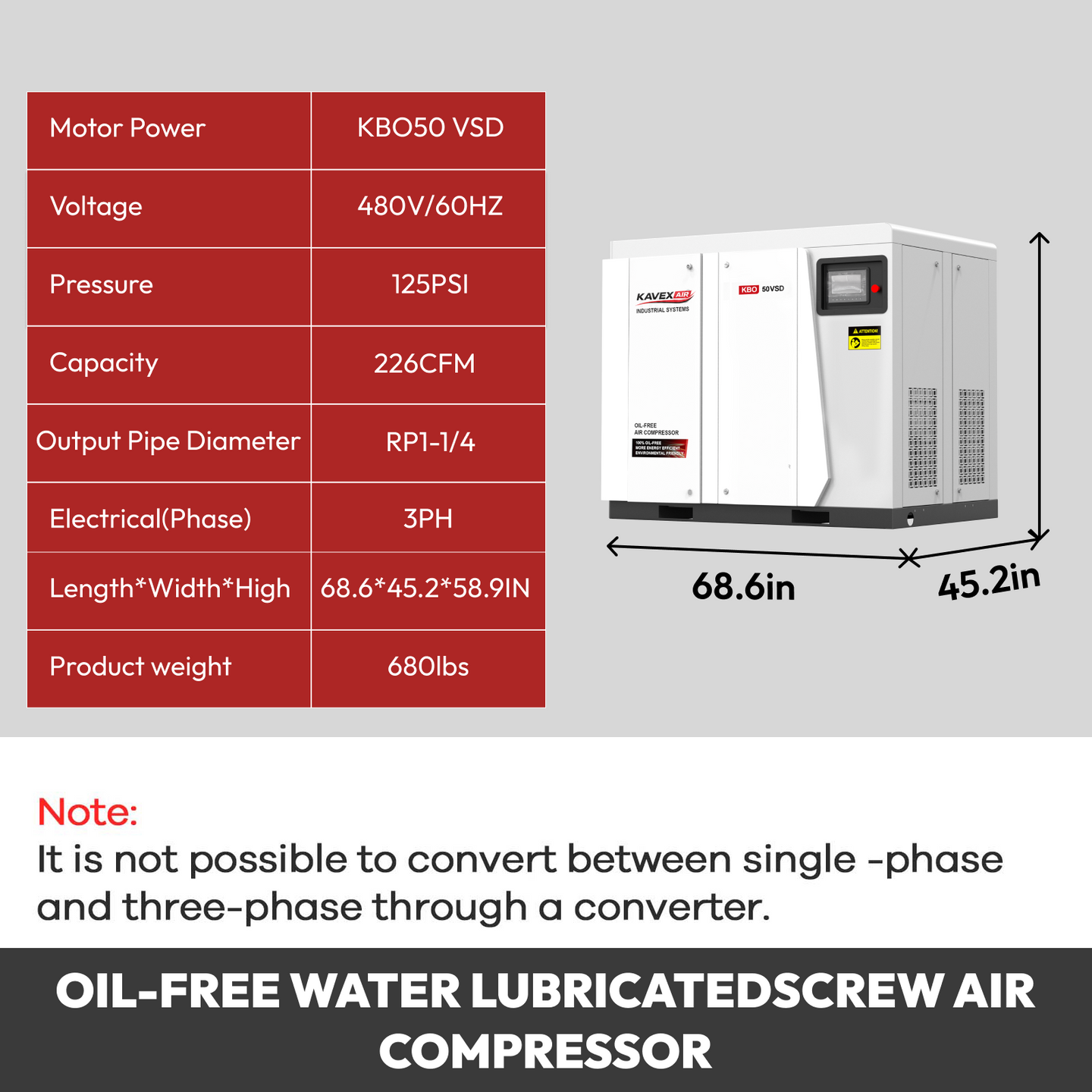

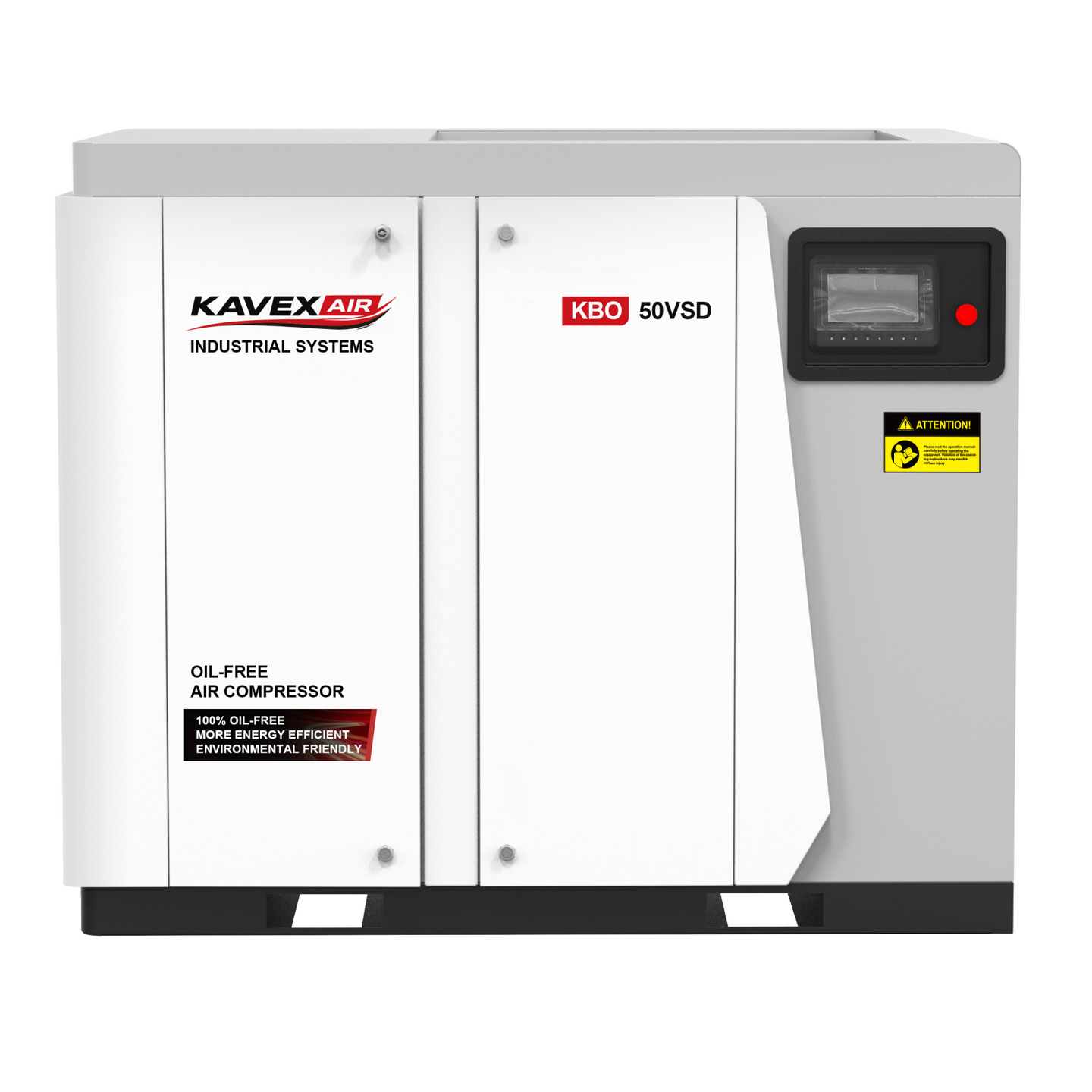

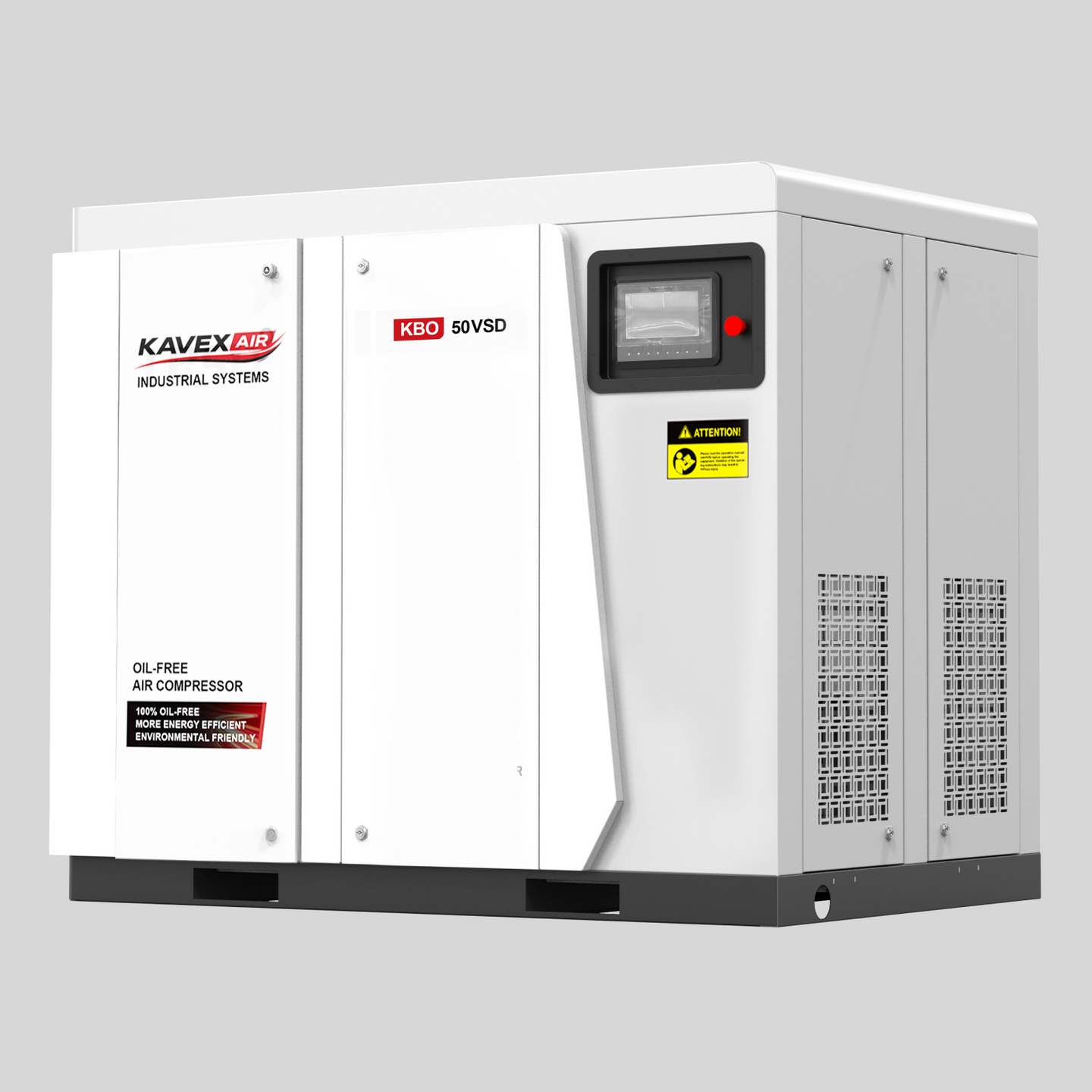

Oil-free Water Lubricated Screw Air Compressor - BHO37F-8
Model: KBO50 VSD
Motor Power: 37kW
Voltage: 480V/60Hz, 3PH
Pressure: 125PSI
Capacity: 226CFM
Output Pipe Diameter: RP1-1/4
Dimensions (LWH): 68.6 × 45.2 × 58.9 IN
Product Weight: 680 lbs
- Regular price
- $0.00
Oil-free Water Lubricated Screw Air Compressor - BHO37F-8
Model: KBO50 VSD
Motor Power: 37kW
Voltage: 480V/60Hz, 3PH
Pressure: 125PSI
Capacity: 226CFM
Output Pipe Diameter: RP1-1/4
Dimensions (LWH): 68.6 × 45.2 × 58.9 IN
Product Weight: 680 lbs
- Regular price
- $0.00
```html
Technical Specifications
| Model | Nominal Power (HP) |
Working Pressure (PSI) |
Free Air Delivery (CFM) |
Weight (LBS) |
Noise Level dB(A) |
Dimensions (L × W × H) (IN) |
Outlet Size |
|---|---|---|---|---|---|---|---|
| KBO10 VSD | 10 | 125 | 36.02 | 946 | 60 | 39.00" × 28.08" × 41.73" | RP3/4 |
| KBO10 VSD | 10 | 145 | 35.31 | 946 | 60 | 39.00" × 28.08" × 41.73" | RP3/4 |
| KBO15 VSD | 15 | 125 | 63.57 | 1078 | 63 | 45.08" × 32.96" × 49.53" | RP3/4 |
| KBO15 VSD | 15 | 145 | 56.50 | 1078 | 63 | 45.08" × 32.96" × 49.53" | RP3/4 |
| KBO20 VSD | 20 | 125 | 95.35 | 1430 | 65 | 51.32" × 36.86" × 49.92" | RP1 |
| KBO20 VSD | 20 | 145 | 70.63 | 1430 | 65 | 51.32" × 36.86" × 49.92" | RP1 |
| KBO25 VSD | 25 | 125 | 113.01 | 1716 | 67 | 59.28" × 41.34" × 54.99" | RP1 |
| KBO25 VSD | 25 | 145 | 95.35 | 1716 | 67 | 59.28" × 41.34" × 54.99" | RP1 |
| KBO30 VSD | 30 | 125 | 134.20 | 1914 | 68 | 59.28" × 41.34" × 54.99" | RP1 |
| KBO30 VSD | 30 | 145 | 120.07 | 1914 | 68 | 59.28" × 41.34" × 54.99" | RP1 |
| KBO40 VSD | 40 | 125 | 183.64 | 2376 | 69 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO40 VSD | 40 | 145 | 165.98 | 2376 | 69 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO50 VSD | 50 | 125 | 226.01 | 2486 | 71 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO50 VSD | 50 | 145 | 211.89 | 2486 | 71 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO60 VSD | 60 | 125 | 264.86 | 2640 | 74 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO60 VSD | 60 | 145 | 204.83 | 2640 | 74 | 68.64" × 45.24" × 58.89" | RP1-1/4 |
| KBO75 VSD | 75 | 125 | 360.21 | 2970 | 74 | 74.10" × 48.75" × 53.82" | RP2 |
| KBO75 VSD | 75 | 145 | 324.89 | 2970 | 74 | 74.10" × 48.75" × 53.82" | RP2 |
| KBO100 VSD | 100 | 125 | 466.15 | 3850 | 75 | 74.10" × 48.75" × 53.82" | RP2 |
| KBO100 VSD | 100 | 145 | 360.21 | 3850 | 75 | 74.10" × 48.75" × 53.82" | RP2 |
| KBO125 VSD | 125 | 125 | 536.78 | 4840 | 76 | 77.61" × 48.75" × 74.10" | RP2 |
| KBO125 VSD | 125 | 145 | 459.09 | 4840 | 76 | 99.45" × 54.60" × 53.82" | RP2 |
| KBO150 VSD | 150 | 125 | 713.36 | 5940 | 78 | 85.80" × 62.40" × 74.10" | DN65 |
| KBO150 VSD | 150 | 145 | 635.66 | 5940 | 78 | 85.80" × 62.40" × 74.10" | DN65 |
| KBO175 VSD | 175 | 125 | 819.30 | 6270 | 80 | 85.80" × 62.40" × 68.56" | DN65 |
| KBO175 VSD | 175 | 145 | 678.04 | 6270 | 80 | 85.80" × 62.40" × 68.56" | DN65 |
| KBO200 VSD | 200 | 125 | 918.18 | 6380 | 82 | 85.80" × 62.40" × 68.56" | DN65 |
| KBO250 VSD | 250 | 125 | 1059.44 | 7260 | 83 | 111.54" × 70.20" × 75.86" | DN100 |
| KBO275 VSD | 275 | 125 | 1255.38 | 7700 | 83 | 111.54" × 70.20" × 75.86" | DN100 |
| KBO300 VSD | 300 | 125 | 1271.33 | 9900 | 85 | 111.54" × 78.00" × 89.70" | DN100 |
| KBO350 VSD | 350 | 125 | 1412.59 | 10340 | 85 | 111.54" × 78.00" × 89.70" | DN100 |
| KBO420 VSD | 420 | 125 | 1765.73 | 11000 | 90 | 111.54" × 78.00" × 89.70" | DN100 |
